Price Osc (Indicator)

image\trumpet2.gif Disclaimer


Input Information

Name Expression Default Description
Price Numeric Close Price used to calculate the moving averages.
FastLength Numeric 9 Number of bars to include in calculation of the fast (shorter) moving average.
SlowLength Numeric 18 Number of bars to include in calculation of the slow (longer) moving average.

Market Synopsis

The Price Oscillator indicator calculates a fast, or short, moving average and a long, or slow, moving average. The difference between these two values is then plotted. The moving averages are not plotted. One approach to analyzing moving averages is to note the relative position of the 2 averages: the short moving average above the long moving average would yield a positive Price Oscillator value and be bullish; the short moving average below the long moving average would yield a negative Price Oscillator value and be bearish.

Calculating the difference between the two averages and plotting this as an oscillator makes extreme positive and negative values stand out as possible overbought and oversold conditions.

Plot Information

Number Name Default Color Description
Plot1 PriceOsc Yellow/Magenta Plots the price oscillator value.
Plot2 ZeroLine Dark Green Plots a reference line at zero.

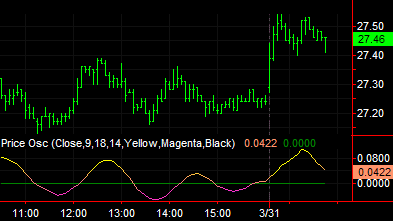

When applied to a chart, this indicator displays two plots in a separate subgraph from the price data.

Set either UpColor and/or DnColor to -1 to disable gradient plot coloring.  When disabled, Plot1 color is determined by settings in indicator properties dialog box.  Plot2 (ZeroLine) color always comes from indicator properties dialog box.

Related Function

PriceOscillator
