Strategy Equity (Indicator)Analysis Techniques & Strategies
Strategy Equity (Indicator)
There are no inputs for this indicator.
The Strategy Equity indicator plots the results of a trading strategy applied to a chart. The plots represent the cumulative profit or loss on closed trades and the cumulative profit or loss on closed trades plus the open position profit or loss.
This indicator provides a bar-by-bar picture of the results of a strategy applied to the price data. This is often known as the equity curve of a trading strategy and is a visual representation of the strategy's consistency. It shows during what periods profits and losses occurred. This indicator only returns results when applied to a chart containing a strategy.
| Number | Name | Default Color | Description |
| Plot1 | OpenEquity | Gray | Plots the cumulative realized closed profit/loss plus the profit/loss on open positions as a line. |
| Plot2 | ClosedEquity | Red | Plots the cumulative realized (closed trades) profit/loss as a histogram. |
| Plot3 | ZeroLine | Dark Green | Plots a horizontal line at 0. |

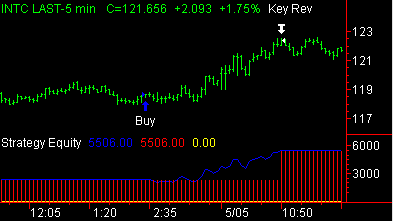

When applied to a chart, this indicator displays three plots in a separate subgraph from the price data.
